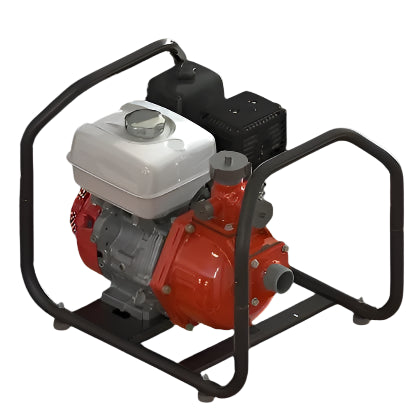

The VERSAX®-9W is powered by a 9 HP Honda engine configured to be portable with a wraparound frame.

Flow Rate at Specified Pressure

• Maximum pressure: 150 PSI (10.3 BAR)
• Maximum flow: 105 US gals/min (397 L/min)
• Maximum head: 347' (106 m)

Performance

• 92 GPM (348 lpm) @ 50 PSI (3.4 BAR)
• 80 GPM (303 lpm) @ 75 PSI (5.2 BAR)
• 64 GPM (242 lpm) @ 100 PSI (6.9 BAR)

Engine

• Model and Type: Honda GX270 Series, 4-stroke horizontal shaft, OHV, air cooled gasoline
• Maximum Power: 8.5 hp (6.3 kW) @ 3600 RPM
• Maximum Torque: 14.1 lb.-ft (19.1 Nm) @ 2500 RPM
• Starting System: Manual; Recoil

Pump End

• Type: Self-Priming 2-Stage Centrifugal Pump
• Intake: 2" Male NPT
• Discharge: 1-1/2", 1", 1" Male NPT

Frame

• Wrap-around frame

Other Specifications

• Discharge Caps:  2x Cap 1” NPSH & Cap 1-1/2” NPSH (N/A)
