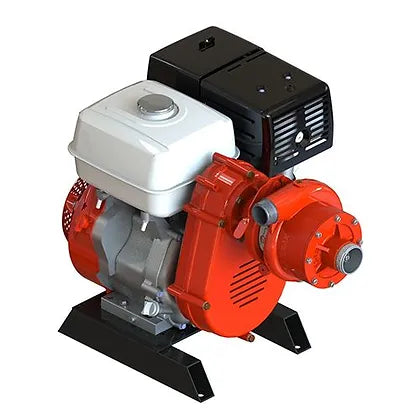

STRIKER-3 High-Pressure 3-Stage Fire Pump (13V), Model 100047 — vehicle-mount configuration with Honda GX390 13 HP engine, vertical-drive unit, and base mount with industrial isolators. Includes FastWire 8-pin control cable.

Performance

• Maximum Pressure: 345 PSI (23.8 BAR)
• Maximum Flow: 102 US GPM (386 L/min)
• Flow at Key Pressures:
  • 87 GPM (329 L/min) @ 100 PSI (6.9 BAR)
  • 75 GPM (284 L/min) @ 150 PSI (10.3 BAR)
  • 40 GPM (151 L/min) @ 250 PSI (17.2 BAR)
• Maximum Head: 797 ft (243 m)

Engine & Drive

• Engine: Honda GX390, single cylinder, OHV, 13 HP (11.7 kW) @ 3600 RPM
• Max Torque: 19.5 lb-ft (26.4 Nm) @ 2500 RPM
• Starting System: 12 VDC electric start with manual recoil backup
• Drive Unit: Timing belt and pulley; speed increaser 1.88:1

Connections & Mounting

• Intake: 2" Male NPSH
• Discharge: 1.5" Male NPSH
• Frame: Base mount with industrial isolators
• Vehicle-mount setup with 8-pin FastWire control cable (3 ft)', optional remote mount control panels (XCP Series)

Additional Specs

• Weight: 129 lbs (59 kg)
• Fuel Tank: Integral 1.6 US gallons (6.1 L) standard

Use Case

• Vehicle-mounted wildfire suppression
• Relay pumping
• High head applications
