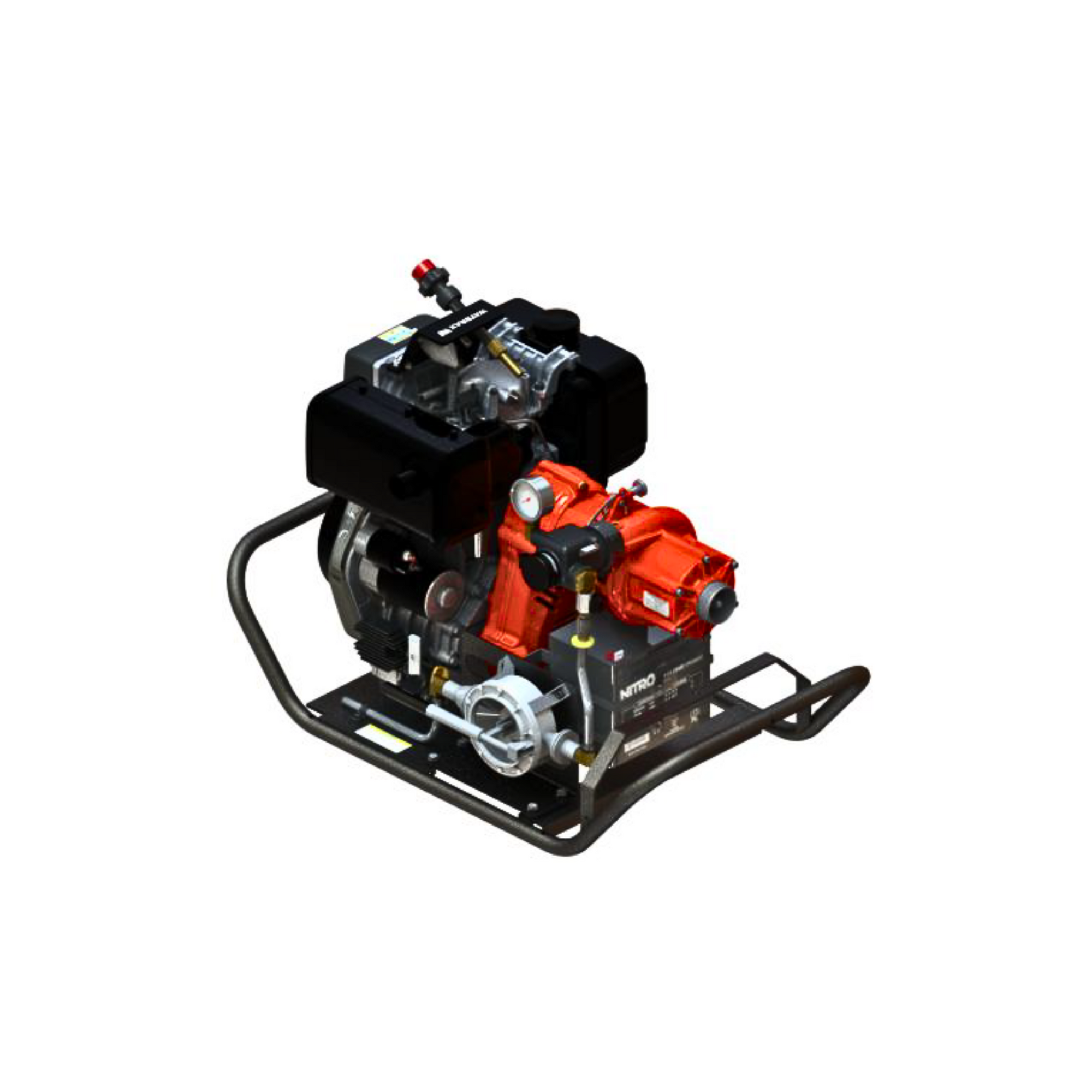

The WATERAX STRIKER-4-DIESEL PORTABLE combines a reliable YANMAR L100 diesel engine, producing 9.3 hp (6.8 kW), with the innovative, lightweight and highly efficient MARK-3® 4-stage pump end to deliver exceptional performance.

The unit achieves pressures of up to 310 PSI (21.4 BAR) and flow rates reaching 112 US GPM (424 LPM). It produces an impressive 85 US GPM (322 LPM) at 100 psi (14.5 BAR).
Strong enough to operate as a source pump for tandem and parallel pumping, it is also optimal for direct attack firefighting, remote watering, and sprinkler systems.

The WATERAX quick release clamp provided on the pump lets you replace a damaged pump end in the field with minimal equipment downtime. The 4-stage pump end is identical to the pump end on the MARK-3® Watson Edition unit, which greatly reduces your spare parts inventory and improves your ability to respond to unforeseen equipment damage

Applications
•Attack line firefighting
•Long hose lay for remote watering during firefighting operations
•High elevation firefighting in mountainous areas
•Accuracy in flow trajectory when structure fire fighting
•Tandem pumping over long distances
•Parallel pumping for higher volumes

Features and Benefits
•Quick release clamp and swappable pump ends for minimal equipment downtime and inventory
•Belt drive system for reliable, low maintenance performance
•Aluminum alloy volute and suction cover for light weight and greater resistance to corrosion
•Composite corrosion-resistant pump components
•Sealed bearing to eliminate pump end greasing in the field
•Low oil pressure switch included
•Integral Fuel Tank
•Engine Mount Control Panel with Vernier Throttle.
•EPA & CARB exhaust emission compliant
•Application matched and approved by YANMAR
