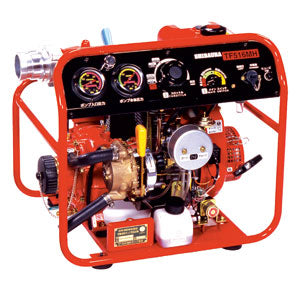

Shibaura TF516MH-AB Air-Cooled Fire Pump
Shibaura TF516MH-AB Air-Cooled Fire Pump
Shibaura’s smallest fire pump combines compact portability with powerful performance. Lightweight and highly mobile, the TF516MH-AB features Shibaura’s original air-cooled engine and is ideal for quick installation on small vehicles or trailers.
Model Line-Up:
TF516MH-AB
Dry Weight: 41 kg
Starting System: Electric & Manual Starter
Discharge Performance:
- 0.5 MPa @ 1 m suction: 560 L/min
- 0.5 MPa @ 3 m suction: 533 L/min
- 1.0 MPa @ 1 m suction: 280 L/min (0.8 MPa)
- 1.0 MPa @ 3 m suction: 257 L/min (0.8 MPa)
Priming Performance: Approx. 3.6 seconds @ 1 m suction height
Key Features
1. AUTOMATIC CHOKE SYSTEM FOR CARBURETOR
Temperature sensors adjust the choke valve automatically. Just turn the main switch to start the engine and immediately operate at full throttle. The diaphragm rod is oriented downward to prevent dust or water intrusion, and bimetal heaters are integrated for maintenance reliability.
2. ADVANCED FUEL FEEDING SYSTEM
A separate fuel feeding system ensures optimal gasoline/oil mixing at all times. An oil sensor alerts users to low levels via the OK monitor display.
3. SHIBAURA’S UNIQUE WATER SHUT-OFF VALVE
The integrated 5-valve body simplifies flow control. The valve opens automatically under vacuum pressure, and a single-touch button drains water from the pump chamber instantly.
4. AIR-COOLED ENGINE FIRE PUMP
Shibaura offers the widest variety of air-cooled fire pump models in Japan, built for diverse deployment scenarios.
5. WATER-COOLED ENGINE FIRE PUMP (FK500-A)
For users requiring sealed water systems, Shibaura’s liquid-cooled radiator engine minimizes water loss, enhances combustion, and prevents environmental intrusion. (Note: This feature applies to FK500-A model only.)
6. VACUUM PUMP
4-vane rotary design delivers fast suction and long component life with minimal maintenance complexity.
7. QUICK VALVE
The short 45-degree stroke lever provides smooth and immediate control over water discharge.
8. OILLESS VACUUM PUMP
High-strength carbon fiber blades eliminate oily discharge, making it safe for the environment and surrounding ground conditions.
9. AUTO COOLANT CIRCULATION SYSTEM (NICE VALVE)
Prevents coolant water from being wasted during operation. The system recirculates coolant around the pump to avoid creating slippery or muddy terrain—ideal for water-scarce wildfire areas.
Specifications
| Item | TF516MH-AB |
|---|---|
| Dimensions (L×W×H) | 555 × 466 × 520 mm |
| Dry Weight | 41 kg |
| Pump Model | Shibaura C505 |
| Type | High-pressure, single-stage centrifugal |
| Discharge Performance | 0.5 MPa / 1 m: 560 L/min 0.5 MPa / 3 m: 533 L/min 1.0 MPa / 1 m: 280 L/min (0.8 MPa) 1.0 MPa / 3 m: 257 L/min (0.8 MPa) |
| Priming Time | 3.6 sec @ 1 m |
| Engine Model | Shibaura E180A |
| Engine Type | 2-stroke, 1-cylinder, air-cooled gasoline |
| Displacement | 182 cc |
| Bore × Stroke | 65 mm × 55 mm |
| Rated Output | 8.1 kW / 11 PS |
| Fuel Tank Capacity | 4.2 L |
| Fuel Consumption | Approx. 4.6 L/h |
| Fuel Type | Regular unleaded gasoline |
| Vacuum Pump | 4-vane eccentric rotary, carbon blades |
| Max Suction Height | 9 m |
Included Shibaura Technologies:
- ✔ Original 2-Cycle Gasoline Engine
- ✔ Shibaura Centrifugal Pump
- ✔ Shibaura Vacuum Pump
- ✔ Alert Monitoring System
- ✔ Quick Discharge Valve
Made for:
Contractors, tactical response crews, and remote-area personnel needing an ultra-lightweight, vehicle-mountable fire pump that delivers fast discharge with no compromise on reliability.
