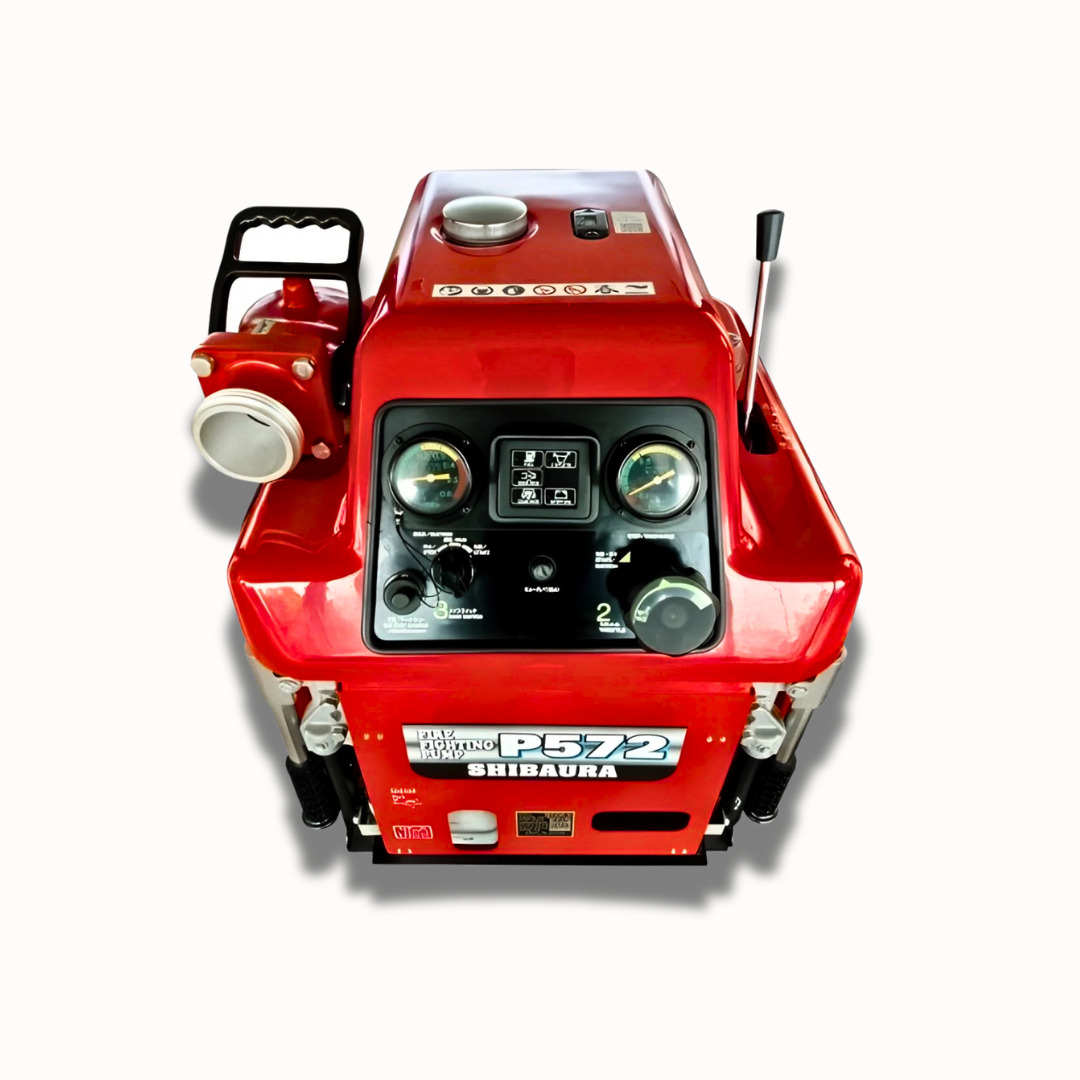

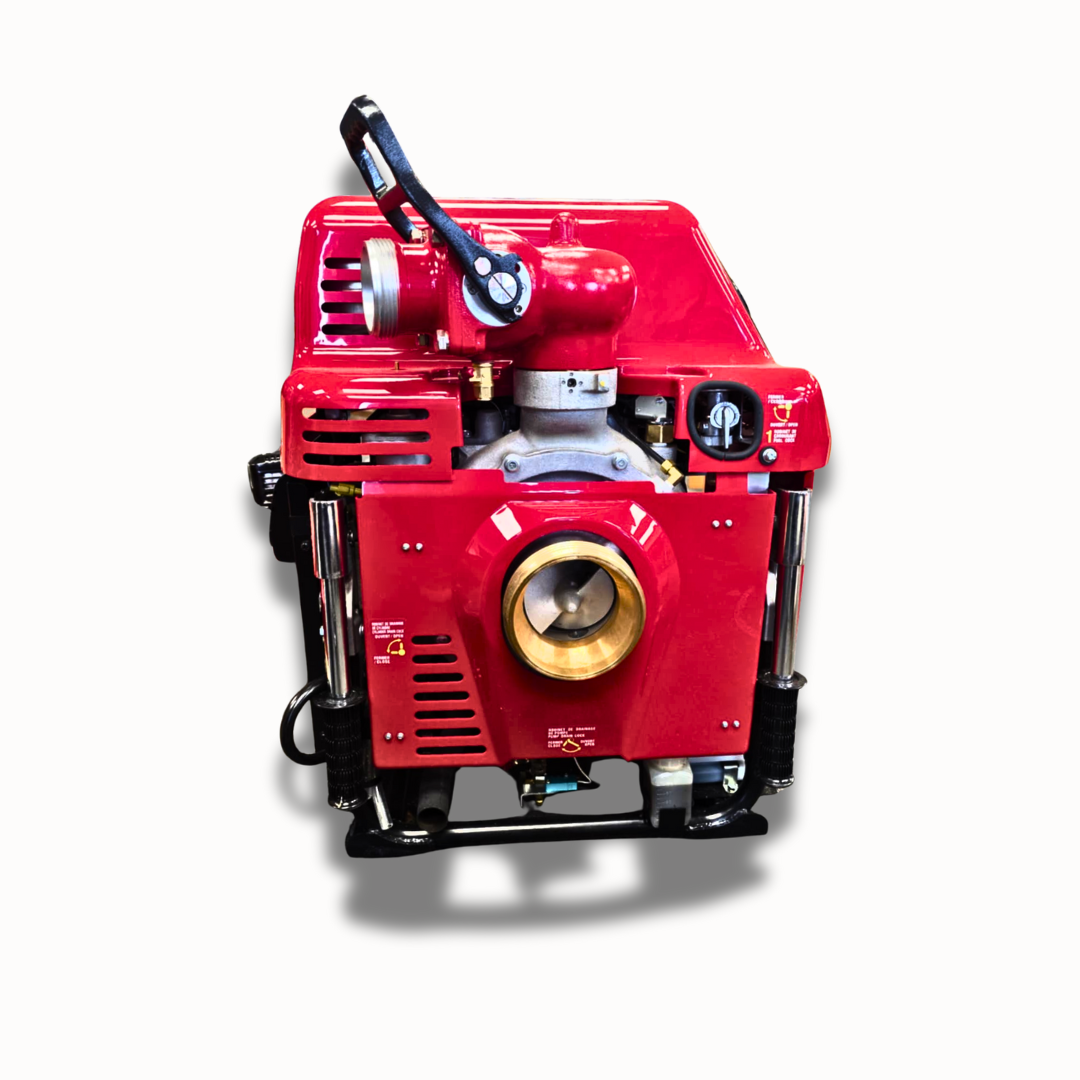

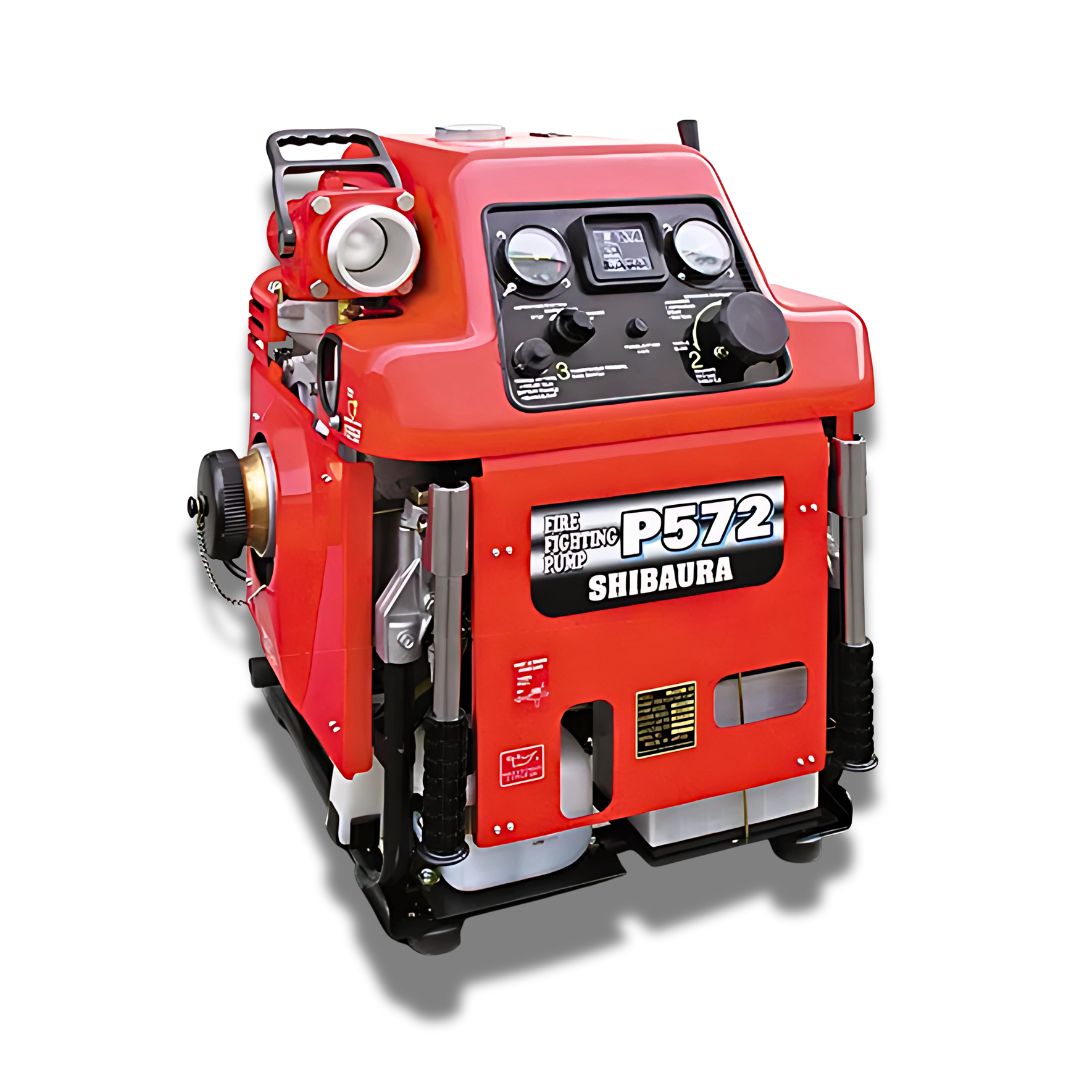

Shibaura P572S-A Water-Cooled Fire Pump
Shibaura P572S-A Water-Cooled Fire Pump
The P572S-A delivers the highest discharge performance in Shibaura’s lineup. Equipped with a large oil-less vacuum pump and a powerful water-cooled engine, it enables faster suction, lower emissions, and larger discharge capacity than comparable models in its class. Built for high-demand environments where power, reliability, and clean operation are critical.
Model Line-Up:
P572S / P572S-A
Dry Weight: 94 kg
Starting System: Electric & Manual Starter
Discharge Performance:
- 0.5 MPa @ 1 m suction: 1,650 L/min
- 0.7 MPa @ 1 m suction: 1,600 L/min
- 1.0 MPa @ 1 m suction: 1,100 L/min
- 1.0 MPa @ 3 m suction: 1,070 L/min
Priming Performance: Approx. 2.1 seconds @ 1 m suction height
Key Features
1. AUTOMATIC CHOKE SYSTEM FOR CARBURETOR
Engine and air temperature sensors auto-adjust the choke valve. The engine starts instantly via one switch and reaches full throttle immediately. The diaphragm rod prevents malfunction from moisture or dust. Integrated bimetal heaters improve long-term maintenance access.

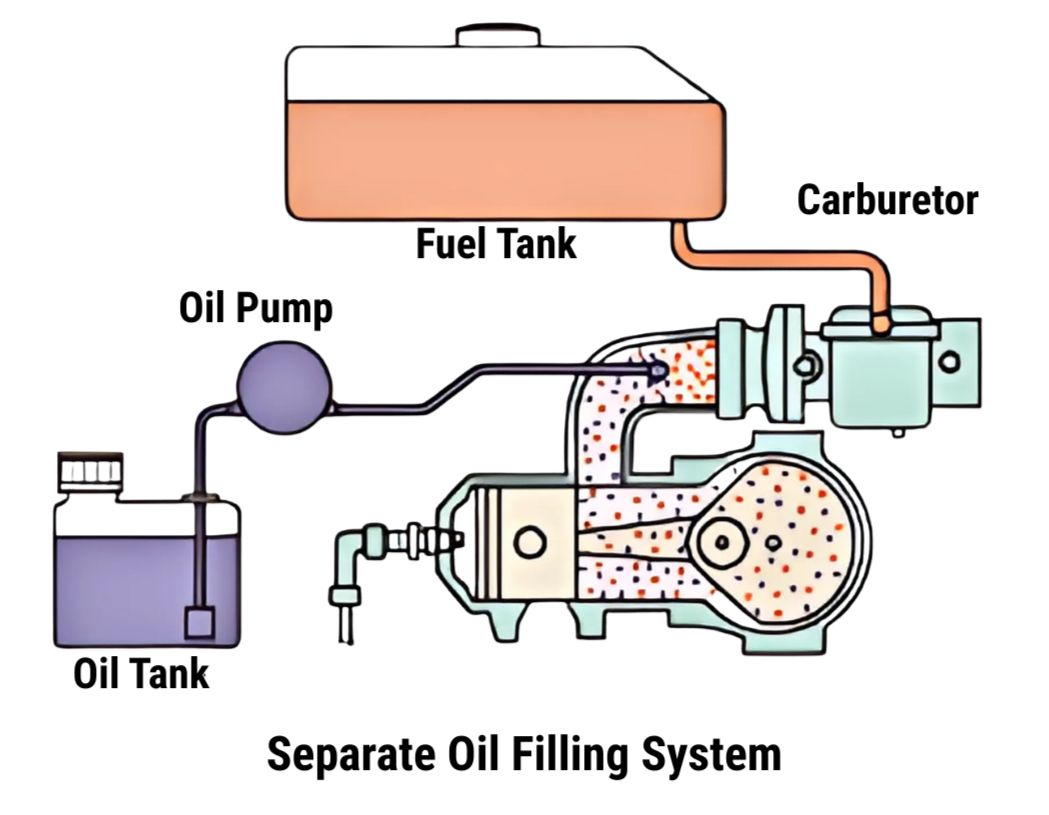

2. ADVANCED FUEL FEEDING SYSTEM
Shibaura’s separate fuel supply system eliminates the need for manual mixing. An oil-level sensor monitors the tank in real time and triggers an automatic engine shutdown if oil runs out, protecting the system from damage.
3. SHIBAURA’S UNIQUE WATER SHUT-OFF VALVE
The integrated 5-valve shut-off system is vacuum-activated and allows single-button drainage of water from the vacuum chamber. Simplifies operation and reduces prep time during emergency response.
4. AIR-COOLED ENGINE FIRE PUMP (OTHER MODELS)
While this model is water-cooled, Shibaura also manufactures the largest variety of air-cooled fire pumps in Japan, offering alternative configurations across different units.
5. WATER-COOLED SYSTEM
The advanced radiator system recirculates coolant without discharging water. Prevents waste, eliminates wet ground hazards, and maintains consistent engine temperature—ideal for dry deployment zones and extended operations.
6. VACUUM PUMP
High-efficiency, low-wear rotary system with fast suction response and simplified maintenance requirements. Built for field durability under load.
7. QUICK VALVE
45° short-stroke discharge valve provides fast, intuitive one-handed operation.
8. OILLESS VACUUM PUMP
High-performance carbon fiber blades eliminate oily discharge—environmentally safe and maintenance-friendly.
9. AUTO COOLANT CIRCULATION SYSTEM (NICE VALVE)
In the event of low coolant levels, the engine will automatically shut down via RRS (Rapid Response Safety) protocol. This closed-loop system helps conserve water and enhances user safety.
Specifications
| Item | P572S-A |
|---|---|
| Dimensions (L×W×H) | 657 × 584 × 720 mm |
| Dry Weight | 94 kg |
| Pump Model | Shibaura P572 |
| Type | High-pressure, single-stage centrifugal |
| Discharge Performance | 0.5 MPa / 1 m: 1,650 L/min 0.7 MPa / 1 m: 1,600 L/min 1.0 MPa / 1 m: 1,100 L/min 1.0 MPa / 3 m: 1,070 L/min |
| Priming Time | 2.1 sec @ 1 m |
| Engine Model | Shibaura EP572 |
| Engine Type | 2-stroke, 2-cylinder, water-cooled gasoline |
| Displacement | 723 cc |
| Bore × Stroke | 80 mm × 72 mm |
| Rated Output | 34.3 kW / 46 PS |
| Fuel Tank Capacity | 12.0 L |
| Fuel Consumption | Approx. 17.5 L/h |
| Fuel Type | Regular unleaded gasoline |
| Vacuum Pump | 4-vane eccentric rotary, carbon blades |
| Max Suction Height | 9 m |
Included Shibaura Technologies:
- ✔ Original 2-Cycle Gasoline Engine
- ✔ Shibaura Centrifugal Pump
- ✔ Shibaura Vacuum Pump
- ✔ Alert Monitoring System
- ✔ Quick Discharge Valve
Made for:
Municipal responders, high-demand wildfire crews, and field units requiring maximum discharge output with minimal envi
