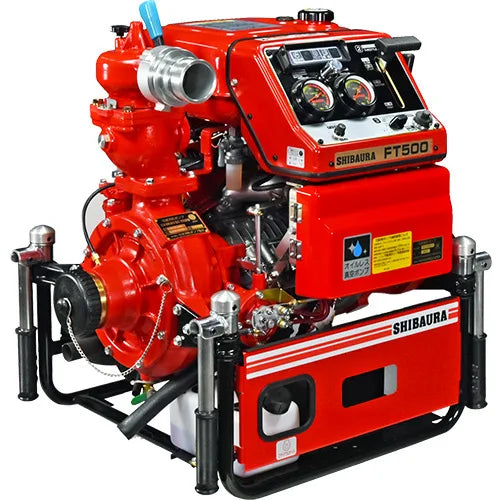

Shibaura FT500-A Air-Cooled Fire Pump
Shibaura FT500-A Air-Cooled Fire Pump
Shibaura’s most powerful air-cooled engine delivers strong discharge performance and reliable priming in demanding field conditions. Designed to operate without being affected by water quality, the FT500-A is a compact, high-output fire pump ready for rapid deployment.
Model Line-Up:
FT500 / FT500-A
Dry Weight: 90 kg
Starting System: Electric & Manual Starter
Discharge Performance:
- 0.5 MPa @ 1 m suction: 1,450 L/min
- 0.5 MPa @ 3 m suction: 1,435 L/min
- 1.0 MPa @ 1 m suction: 830 L/min
- 1.0 MPa @ 3 m suction: 790 L/min
Priming Performance: Approx. 3.5 seconds @ 1 m suction height
Key Features
1. AUTOMATIC CHOKE SYSTEM FOR CARBURETOR
Engine and air temperature sensors automatically adjust the choke valve. A large power coil heats the bimetal for quick actuation, enabling full-throttle operation immediately after startup. The diaphragm rod faces downward to prevent interference from water or dust. Heaters are installed for easy maintenance.
2. ADVANCED FUEL FEEDING SYSTEM
Shibaura’s separate fuel system ensures optimal gasoline/oil mixing under all conditions. An oil level sensor continuously monitors the tank and displays low oil warnings on the OK Monitor.
3. SHIBAURA’S UNIQUE WATER SHUT-OFF VALVE
The 5-valve system integrates into one body for easy maintenance. Vacuum pump pressure automatically opens the water shut-off valve, and a single-touch drain button clears water from the vacuum pump chamber.
4. AIR-COOLED ENGINE FIRE PUMP
As Japan’s widest producer of air-cooled fire pumps, Shibaura offers multiple configurations tailored to different field requirements, build platforms, and operational priorities.
5. WATER-COOLED ENGINE OPTION (FK500-A)
Shibaura’s “Fully Water Cooled Radiator” solves conventional water-cooled pump issues. The sealed system allows operation without discharge, improves combustion, and prevents malfunction from water and dust intrusion.
6. VACUUM PUMP
The 4-vane rotary vacuum system provides rapid suction with minimal wear. Designed for fast deployment and simple maintenance.
7. QUICK VALVE
The 45-degree short-stroke Quick Valve lever allows smooth, fast discharge control with a single hand motion.
8. OILLESS VACUUM PUMP
Built with high-performance carbon fiber blades, the vacuum pump eliminates oily discharge. A clean, environmentally responsible design ideal for any terrain.
9. AUTO COOLANT CIRCULATION SYSTEM (NICE VALVE)
The coolant recirculates inside the pump without being discharged—minimizing environmental impact and preventing slippery ground conditions during suppression efforts.
Specifications
| Item | FT500-A |
|---|---|
| Dimensions (L×W×H) | 737 × 572 × 765 mm |
| Dry Weight | 90 kg |
| Pump Model | Shibaura B612B |
| Type | High-pressure, single-stage centrifugal |
| Discharge Performance | 0.5 MPa / 1 m: 1,450 L/min 0.5 MPa / 3 m: 1,435 L/min 1.0 MPa / 1 m: 830 L/min 1.0 MPa / 3 m: 790 L/min |
| Priming Time | 3.5 sec @ 1 m |
| Engine Model | Shibaura E440C |
| Engine Type | 2-stroke, 2-cylinder, air-cooled gasoline |
| Displacement | 436 cc |
| Bore × Stroke | 68 mm × 60 mm |
| Rated Output | 22.8 kW / 31 PS |
| Fuel Tank Capacity | 14.5 L |
| Fuel Consumption | Approx. 14.0 L/h |
| Fuel Type | Regular unleaded gasoline |
| Vacuum Pump | 4-vane eccentric rotary, carbon blades |
| Max Suction Height | 9 m |
Included Shibaura Technologies:
✔ Original 2-Cycle Gasoline Engine
✔ Shibaura Centrifugal Pump
✔ Shibaura Vacuum Pump
✔ Alert Monitoring System
✔ Quick Discharge Valve
Made for:
Wildland crews, emergency responders, municipalities, and utility teams requiring a powerful, portable pump that delivers consistent performance with minimal downtime.
