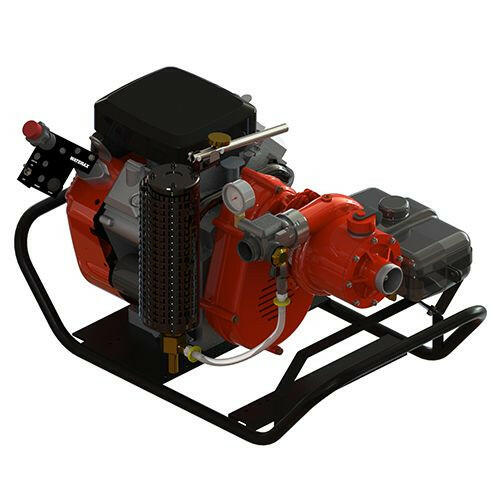

BB-4-23PXTC HIGH-PRESS BB-4® PUMP, 4-STG, B&S23

sku: 100018

The BB-4® Series is a full line of high-pressure centrifugal pumps that has been used by forest agencies for over 40 years in Type 6 brush trucks. It has become the weapon of choice in wildland operations. The BB-4® comes in portable and vehicle-mounted configurations and all models feature a unique greaseless sealed bearing and a blister-resistant mechanical rotary seal. A unique feature of the BB-4® pump is the quick-release pump end that is interchangeable with the MARK-3® pump, which greatly reduces your spare parts inventory and allows for quick infield swap outs.

The higher power provided by the Briggs & Stratton 23 HP engine makes it ideal for pumping at high altitudes.

Applications
• Slip-on units
• Attack-line firefighting
• Long hose lays for remote watering during firefighting operations
• High-elevation firefighting in mountainous areas
• High pressure provides accuracy in flow trajectory
• Tandem pumping over long distances
• Parallel pumping for higher volumes

Features & Benefits
• Quick-release clamp and detachable pump end for minimal equipment downtime and inventory
• Sealed bearing to eliminate pump end greasing in the field
• Drive assembly for reliable, low maintenance performance
• Aluminum alloy pump components and anodized parts for lighter weight and greater resistance to corrosion
• EPA certified

$10,195.00 CAD

Quantity

All 2 BB-4-23PXTC HIGH-PRESS BB-4® PUMP, 4-STG, B&S23 items are already added to cart!

quantity product

Frequently bought together

DETACHABLE MULTI-STAGE PUMP ENDS

WATERAX performance and dependability come from our superior multi-stage pump end design that provides unrivaled pressure and volume. Unique blister resistant mechanical rotary seal to prolong pump end longevity. Maintenance free sealed bearing to avoid the need for greasing the pump end in the field. Anodized aluminum impellers and pump body which eliminate galvanic corrosion common with bronze impellers.

LOW MAINTENANCE DRIVE ASSEMBLY

Originally designed for the BB-4®, the WATERAX low maintenance drive assembly has been time-tested under the most difficult conditions and proven to be dependable and reliable for more than 40 years.

INNOVATIVE QUICK-RELEASE CLAMP

Our innovative pump end quick-release clamp provides ease of maintenance without having to disassemble the complete unit, thus significantly reducing equipment downtime, which can prove crucial in emergency situations.

CONVENIENT 2-IN-1 SYSTEM

The WATERAX 2-in-1 system enables the easy interchanging of pump ends in the field. The platform is also compatible with either a high-pressure or a mid-range pump end, providing users with maximal performance flexibility at the lowest possible cost.

Use Cases

WATERAX has a 125-year track record conceiving and manufacturing industry-leading water pumps and innovative water-moving solutions designed to withstand demanding use and the rugged environments in which they are operated.

FireProtection

Wildland fire prevention and protection is an everyday action to prevent potential destruction and reduce the impact of uncontrolled fires.

FireApparatus

Fire agencies need versatile, rugged and portable equipment for wildland and wildland-urban interface (WUI) applications to transport firefighters, hoses, pumps, fittings, water and all other related equipment. Due to the remote locations of wildland fires, getting to sites generally requires four-wheel drive and off-road capabilities.

WATERAX provides centrifugal fire pump models for type 4, 5, 6 and 7 wildland engines. To complement our high-pressure fire pumps, WATERAX offers a wide selection of components, such as control panels and manifolds, tailored to the needs of fire apparatus manufacturers who create brush trucks, skid unit slip-ons, trailers and sprinkler systems.

Commercial

WATERAX portable pumps are widely used for wildland fire protection but they are also used in farm fields, oil fields, construction sites, marinas, golf courses and even to make ice bridges and snow.

To be efficient, a power pump must be lightweight, capable of generating high pressure and, most of all, reliable. WATERAX pumps are single- or multi-stage centrifugal pumps. This system allows for pumping from natural water sources (lakes, streams, rivers, pools, etc.) which often contain minor debris. Centrifugal systems also allow for tandem pumping and are able to pump water over large distances and points of elevation.
