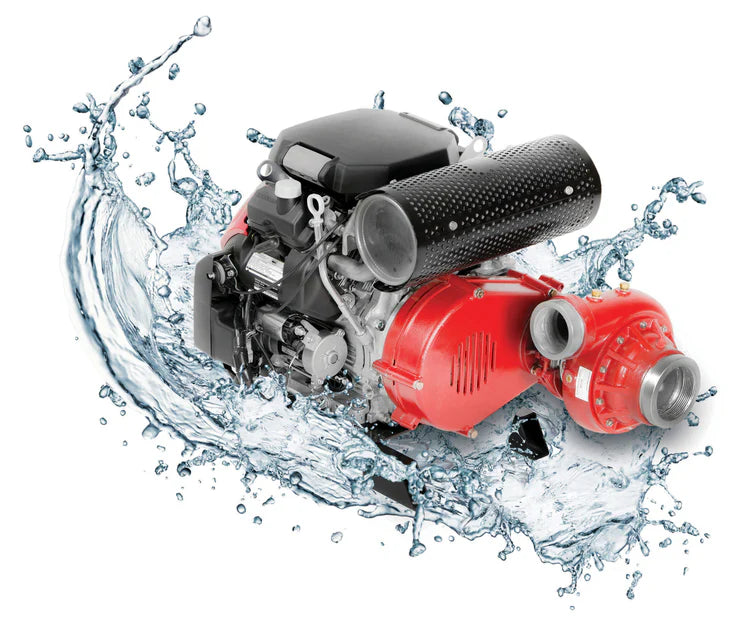

B2X‑23PXTC Mid‑Range Fire Pump – 2‑Stage, Briggs & Stratton 23 HP

The B2X‑23PXTC is powered by a robust 23 HP Briggs & Stratton Vanguard engine mounted on a durable carry frame. Equipped with exhaust primer, integral fuel tank, discharge gauge, and engine-mount control panel for dependable mid-range pump performance.

📊 Performance Ratings

Max Pressure: 200 PSI (13.8 BAR)
Max Flow: 300 US gpm (1 136 L/min)
Max Head: 462 ft (141 m)
285 GPM (1 079 L/min) @ 50 PSI (3.4 BAR)
215 GPM (814 L/min) @ 100 PSI (6.9 BAR)
100 GPM (379 L/min) @ 150 PSI (10.3 BAR)

Engine Specification

Engine: Briggs & Stratton Vanguard, 4‑cycle, twin‑cylinder OHV
Power: 23 hp (17.2 kW) @ 3 600 RPM
Torque: 32.75 lb‑ft (44.4 Nm) @ 2 600 RPM
Start: Recoil standard; 12 VDC electric optional

Pump & Frame Features

Pump: Detachable 2‑stage centrifugal
Intake: 3″ Female NPT / 4″ VIC combo
Discharge: 2½″ Female NPT / 3″ VIC combo
Drive: Timing belt & pulley speed increaser (1.88:1)
Frame: Carry-frame, weight 170 lb (77 kg)

Standard Accessories

Exhaust primer & muffler
1 US gal (3.8 L) integral fuel tank w/ 3‑way valve
0–600 PSI, 2½″ discharge pressure gauge
Engine-mount control panel

Ideal For: Wildland fire crews, structure protection, remote water transfer, dual‑attack lines, forestry, industrial & municipal emergency operations.

Sold out

$0.00 CAD $10,595.00 CAD

Sale 0%

Quantity

B2X™ Mid-Range Pump

The B2X pump is a mid-range fire pump, available in vehicle-mounted and portable configurations, dedicated to wildland and urban interface operations. The various models are powered by choice of Briggs and Stratton Vanguard or Honda 4-stroke engines. Combining both pressure and volume, it is ideal for dual attack line operations, remote water transfer and structure protection. The B2X delivers the best performance of its class with minimal operating costs. Unlike other pumps, the B2X uses a low maintenance drive-belt system that provides efficient and dependable performance.
