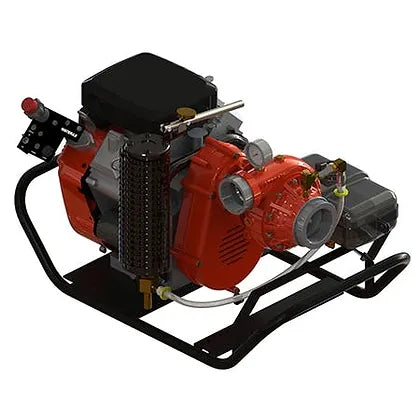

B2X‑23PXTC Mid‑Range Fire Pump – 2‑Stage, Briggs & Stratton 23 HP

The B2X‑23PXTC is powered by a robust 23 HP Briggs & Stratton Vanguard engine mounted on a durable carry frame. Equipped with exhaust primer, integral fuel tank, discharge gauge, and engine-mount control panel for dependable mid-range pump performance.

📊 Performance Ratings

• Max Pressure: 200 PSI (13.8 BAR)
• Max Flow: 300 US gpm (1 136 L/min)
• Max Head: 462 ft (141 m)
• 285 GPM (1 079 L/min) @ 50 PSI (3.4 BAR)
• 215 GPM (814 L/min) @ 100 PSI (6.9 BAR)
• 100 GPM (379 L/min) @ 150 PSI (10.3 BAR)

Engine Specification

• Engine: Briggs & Stratton Vanguard, 4‑cycle, twin‑cylinder OHV
• Power: 23 hp (17.2 kW) @ 3 600 RPM
• Torque: 32.75 lb‑ft (44.4 Nm) @ 2 600 RPM
• Start: Recoil standard; 12 VDC electric optional

 Pump & Frame Features

• Pump: Detachable 2‑stage centrifugal
• Intake: 3″ Female NPT / 4″ VIC combo
• Discharge: 2½″ Female NPT / 3″ VIC combo
• Drive: Timing belt & pulley speed increaser (1.88:1)
• Frame: Carry-frame, weight 170 lb (77 kg)

Standard Accessories

• Exhaust primer & muffler
• 1 US gal (3.8 L) integral fuel tank w/ 3‑way valve
• 0–600 PSI, 2½″ discharge pressure gauge
• Engine-mount control panel

Ideal For: Wildland fire crews, structure protection, remote water transfer, dual‑attack lines, forestry, industrial & municipal emergency operations.
