MX2020-17-18 RT H3M / MAN. CHAIN& SPRKT REW

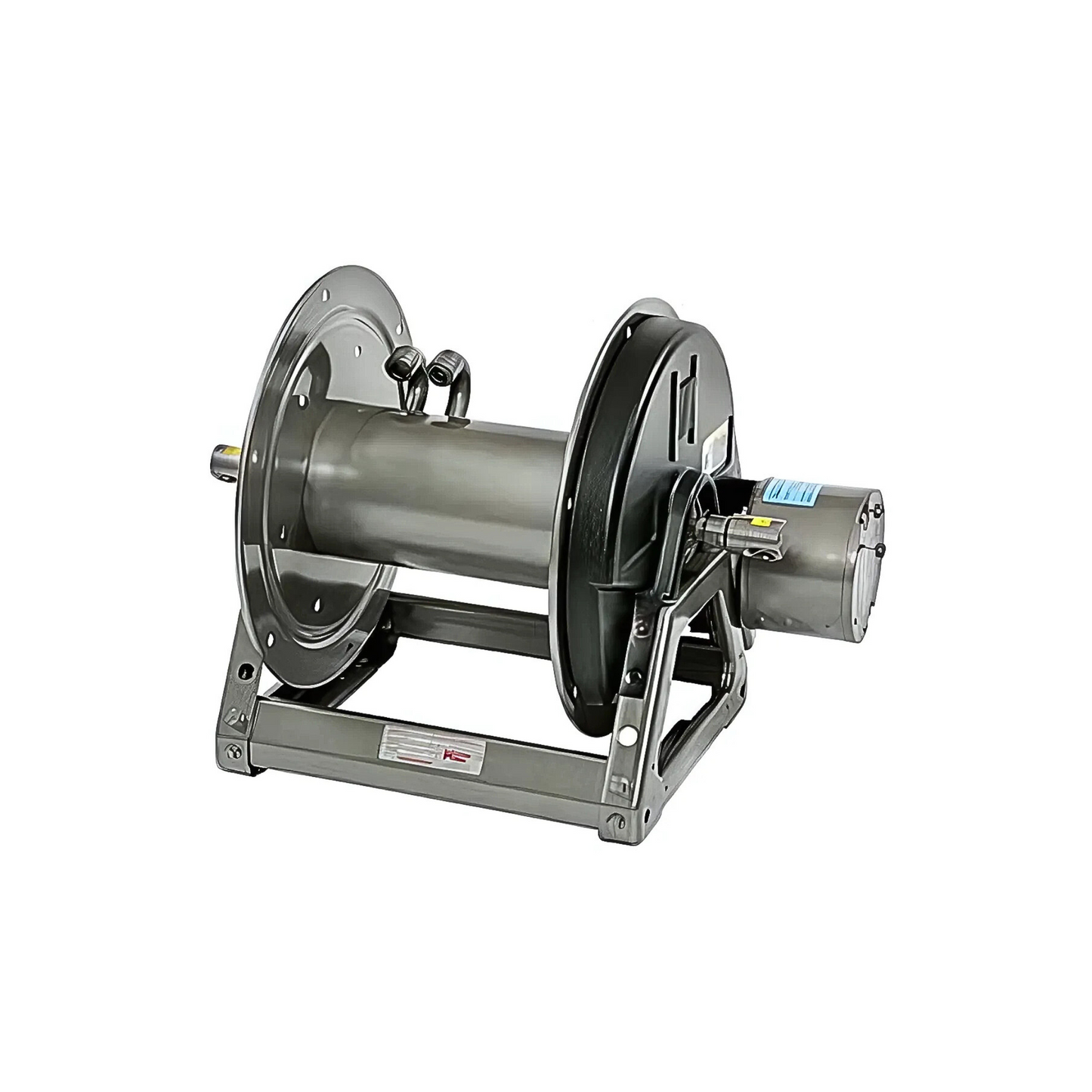

Hannay 2000 Series Hose Reel

Hannay 2000 Series Manual or Power Rewind Reels to handle twin 1/4", 3/8" or 1/2" I.D. Hose.

Applications: Hydraulics, Spray Painting, Air, Water, Agriculture, Construction, Industrial, Land Drilling, Offshore Drilling, Marine, Mining, Transportation, Utilities, Lubrication, Processing

• Two swivel joint inlets and two outlet risers to handle two equal lengths of hose
• Chain-drive crank rewind or chain and sprocket rewind powered by an electric or compressed air motor
• MX crank rewind reels have pinion brake as standard
• Power rewind reels are not supplied with a brake
• Standard inlets: 90° ball bearing swivel joints, 1/2" female NPT threads
• Standard outlets: 1/2" female NPT threads
• Standard pressures to 3,000 psi (207 bar), available up to 10,000 psi (690 bar) – must specify
• Temperatures from -15° F to +250° F (-26° C to +121° C)
• Consult mdi for other pressures and temperatures
• See 2400 Series welding reels for use with oxygen/acetylene
