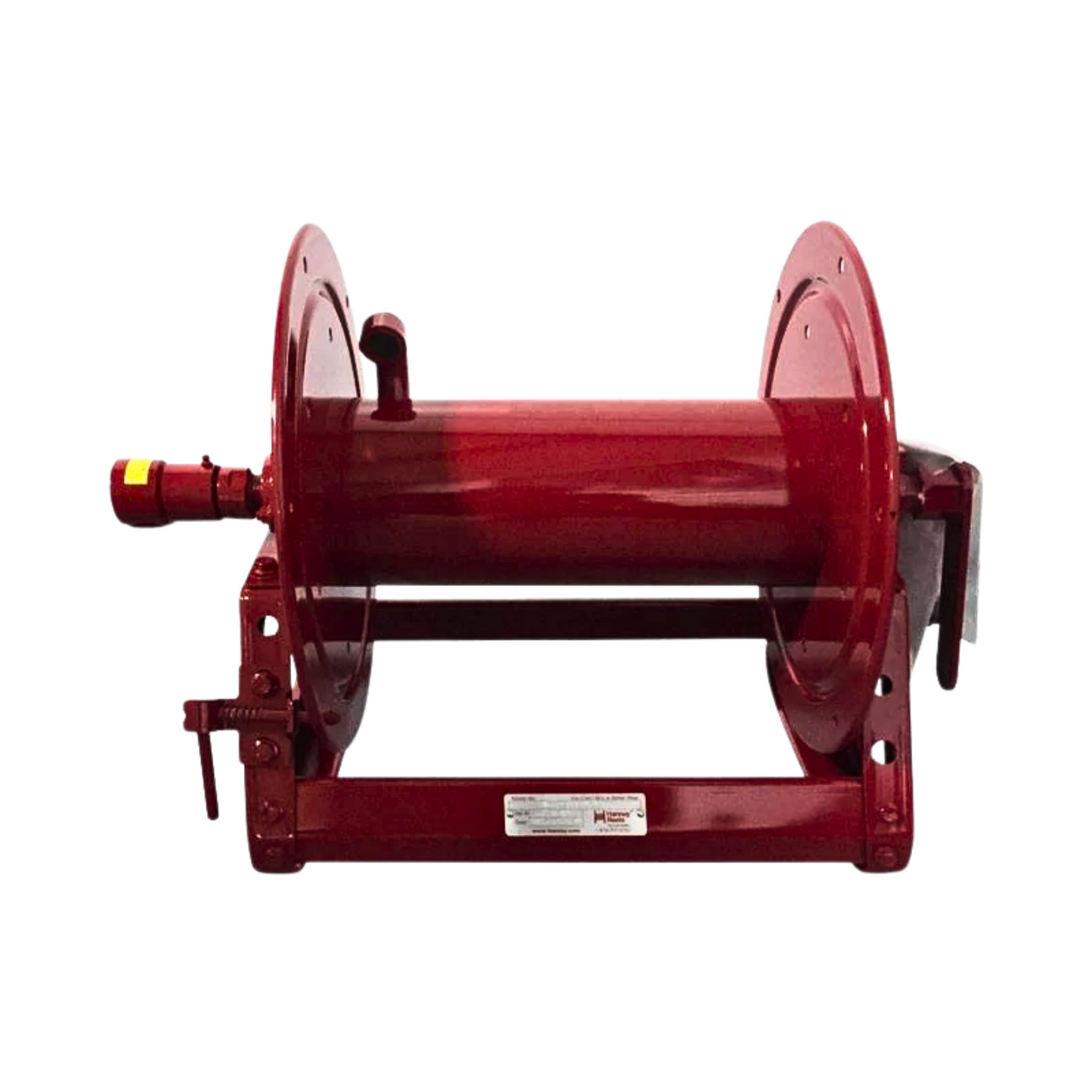

1816-17-18 LT, PER ATT'D DRWG - RED

Hannay 1800 Series Hose Reel

Hannay 1800 Series Manual or Power Rewind Reels to handle single 3/4" or 5/8" I.D. Hose.

Applications: Industrial, Spray, Grounds Maintenance, Lawn Care, Agriculture, Construction, Sewer, Waste, Transportation, Utilities, Processing, Air Compressors, Washdown

• Lightweight, compact reels designed for long lengths of hose in manual and power rewind
• Direct crank rewind is permanently attached
• Chain and sprocket drive powered by electric, hydraulic, or compressed air motor
• Manual reels include: cam-lock drag brake, spring actuated pin lock
• Standard inlet: 90° ball bearing swivel joint, 1" female NPT threads
• Standard outlet: 3/4" female NPT threads
• Optional rollers: specify roller position when ordering
• Standard pressures to 2,000 psi (138 bar), available up to 4,000 psi (276 bar) – must specify
• Temperatures from -40° F to +250° F (-40° C to +121° C)
• Consult mdi for other pressures and temperatures
