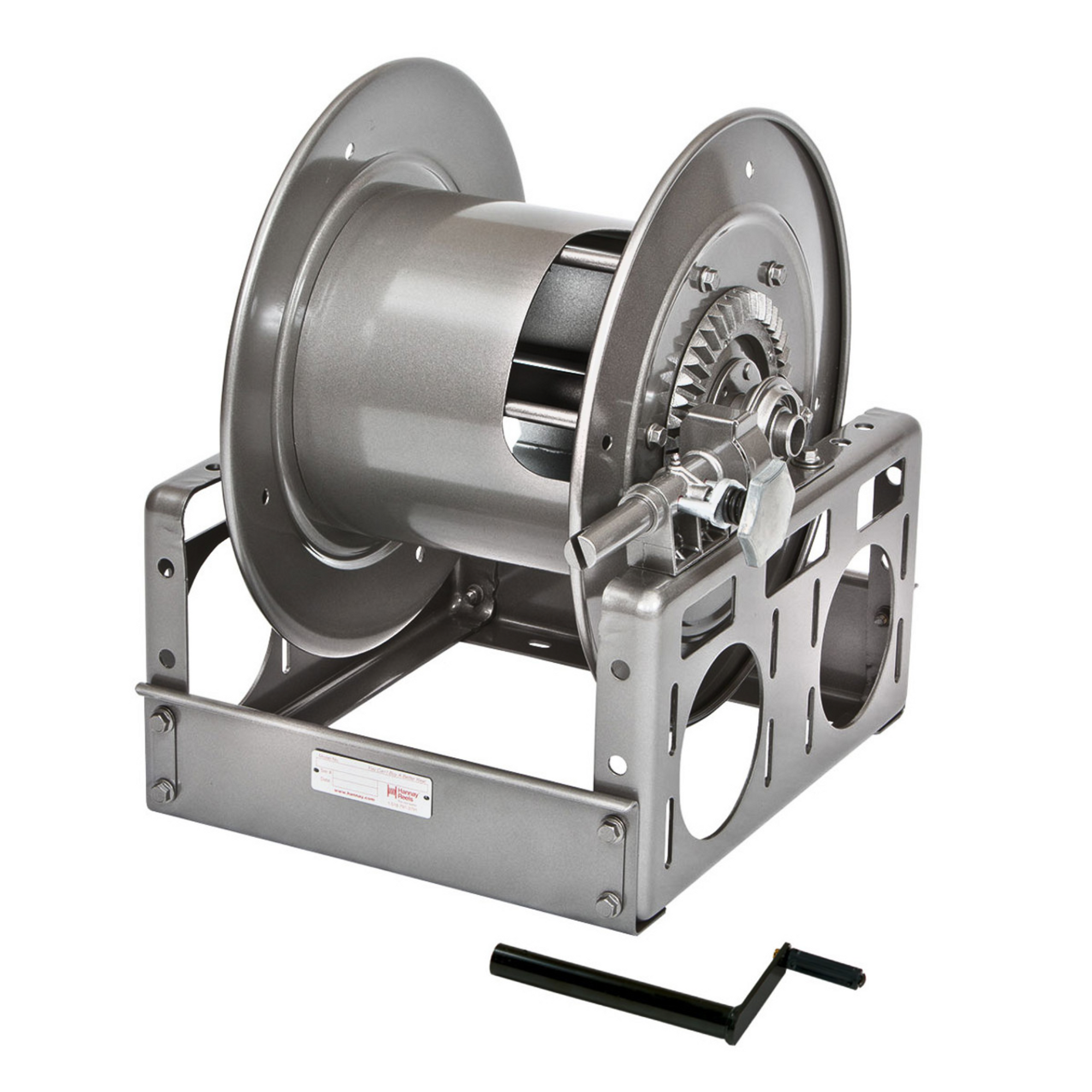

Hannay Reels EPF 38-23-24 RT Manual Reel
sku: EPF 38-23-24 RT
bac_1234EPF38-23-24RTBEVELGEARMANUALREW1"MNPSHREEL
HannayReels1-1/2in.Seriesmanualcrankrewindreel.Reelsaredesignedfor1in.thru1-1/2in.I.D.fuelhoses,reelsdonotcomewithhose.RewindpositionisRightTop(RT).
Model:38-23-24
Dimensions:41.5in.Lx22.75in.Wx23.5in.H
ReelCapacity:
1in.200ft.
11/4in.175ft
13/8in.150ft..
11/2in.100ft.
Features
Strong,heavy-dutyreel
Gear-drivencrankrewind
Standardinlet:90°ballbearingswiveljointwith1-1/2in.femaleNPTthreadsand2in.Victaulic®groove
Standardoutlet:Flangedriserwith1-1/2in.femaleNPTthreads
Standard:inlet,outletriser,andhubassemblyaresteel
Pressuresto600psi(41bar)
Fluidtemperaturesfrom-20°Fto+400°F(-29°Cto+204°C)
EPF 38-23-24 RT BEVEL GEAR MANUAL REW 1" MNPSH REEL
Hannay Reels 1-1/2 in. Series manual crank rewind reel. Reels are designed for 1 in. thru 1-1/2 in. I.D. fuel hoses, reels do not come with hose. Rewind position is Right Top (RT).
- Model: 38-23-24
- Dimensions: 41.5 in. L x 22.75 in. W x 23.5 in. H
- Reel Capacity:
- 1 in. 200 ft.
- 1 1/4 in.175 ft
- 1 3/8 in. 150 ft..
- 1 1/2 in. 100 ft.
Features
- Strong, heavy-duty reel
- Gear-driven crank rewind
- Standard inlet: 90° ball bearing swivel joint with 1-1/2 in. female NPT threads and 2 in. Victaulic® groove
- Standard outlet: Flanged riser with 1-1/2 in. female NPT threads
- Standard: inlet, outlet riser, and hub assembly are steel
- Pressures to 600 psi (41 bar)
- Fluid temperatures from -20° F to +400° F (-29° C to +204° C)
